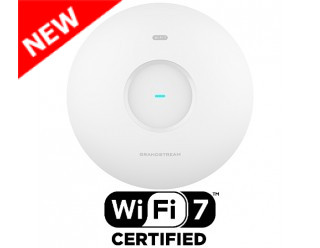

Grandstream GWN7672 Tri-Band 2x2:2 MU-MIMO Wi-Fi 7 Indoor Access Point with DL/UL OFDMA Technology and PoE+ Support

Grandstream GWN7672 is a new generation enterprise-grade Wi-Fi 7 access point with BE11000, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks. It offers tri-band 2x2:2 MU-MIMO with DL/UL Enhanced OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. The GWN7672 improves bandwidth utilization and anti-interference ability with Multi-RU and Preamble Puncturing technology. With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7672 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7672 is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real- time applications, mesh networks, captive portals, BT location with BLE 5.3, 384 concurrent clients per AP and 2x 5Gigabit network ports with PoE+, GWN7672 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Key Features & Benefits:

• 11Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 Tri-band 2x2:2 MU-MIMO with DL/UL OFDMA Technology, MLO, 4KQAM, MRU & Preamble Puncturing Technology
• Up to 175-meter coverage range
• Supports 384 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
• 3 Year Warranty

Specifications:

• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Antennas:
  - 7 single frequency antennas
  - 2.4GHz x2, gain 3.5dBi
  - 5GHz x2, gain 5.5dBi
  - 6GHz x2, gain 5.5dBi
  - BT gain 3.5dBi
• Wi-Fi Data Rates:
  6G:
  - IEEE 802.11be: Up to 5765 Mbps
  - IEEE 802.11ax: 8 Mbps to 4802 Mbps
  5G:
  - IEEE 802.11be: Up to 4230 Mbps
  - IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
  - IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
  - IEEE 802.11n: 6.5 Mbps to 600 Mbps
  - IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  2.4G:
  - IEEE 802.11be: Up to 688 Mbps
  - IEEE 802.11ax: 7.3 Mbps to 574 Mbps
  - IEEE 802.11n: 6.5Mbps to 300 Mbps
  - IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  - IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands:
  - 2.4GHz Radio: 2400 - 2483.5 MHz
  - 5GHz Radio: 5150 - 5850 MHz
  - 6GHz Radio: 5945 - 7125 MHz
• Channel Bandwidth:
  - 2.4G: 20 and 40 MHz
  - 5G: 20, 40, 80, 160 and 240MHz
  - 6G: 20, 40, 80, 160 and 320MHz
• Wi-Fi and System Security:
  - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
  - WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures
  - Unique security certificate and random default password per device
• MIMO:
  - 2x2:2 2.4GHz
  - 2x2:2 5GHz
  - 2x2:2 6GHz
• Coverage Range: Up to 175 meters
• Maximum TX Power:
  - 6G: 24dBm
  - 5G: 25dBm
  - 2.4G: 27dBm
• SSIDs: 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz)
• Concurrent Clients: 384
• Network Interface Ports (WAN/LAN): 2x 5G Ethernet RJ45 ports supporting PoE+
• Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
• Power and Green Energy Efficiency:
  - PoE/PoE+ 802.3af/at
  - Maximum Power Consumption: 25W
• Bluetooth®: BLE 5.3
• Mounting: Indoor wall mount or ceiling mount, kits included
• LEDs: 1 tri-color LED for device tracking and status indication
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management:
  - Embedded controller can manage up to 50 local GWN APs
  - GDMS Networking offers a free cloud management platform for unlimited GWN APs
  - GWN Manager offers premise-based software controller for up to 3,000 GWN APs
• Environmental:
  - Operation: 0°Cto 45°C
  - Storage: -30°C to 60°C
  - Humidity: 10% to 90% Non-condensing
• Physical:
  - Unit Dimension (LxWxH): 220 x 220 x 54mm
  - Unit Weight: 0.8kg
  - Entire Package Dimension (LxWxH): 275 x 266.5 x 80mm
  - Entire Package Weight: 0.95kg
• Compliance: FCC, CE, RCM, IC

Package Contents:

• GWN7672 Wi-Fi 7 Wireless AP
• Mounting Kits
• Quick Start Guide
