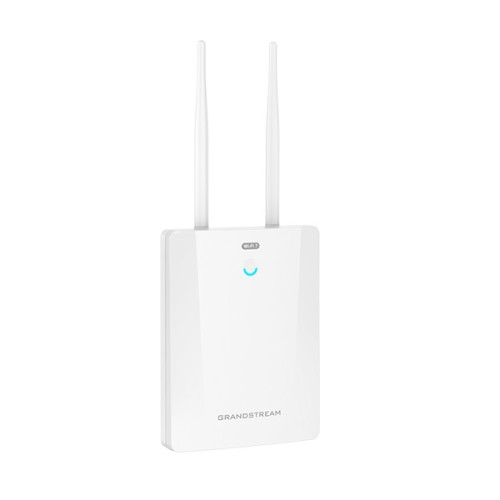

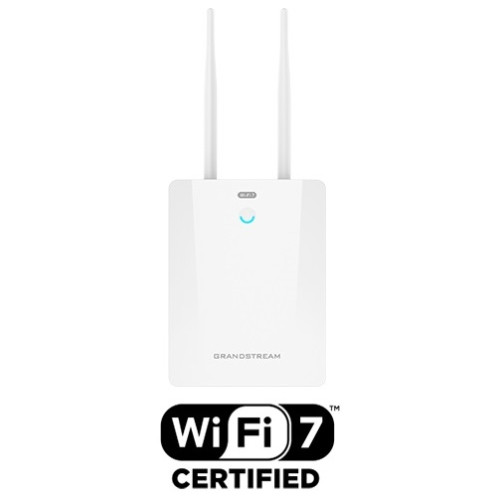

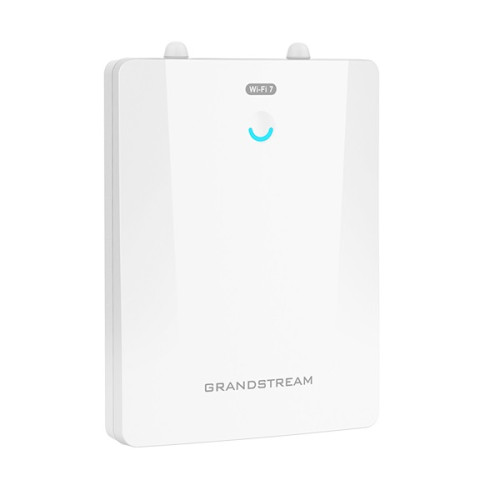

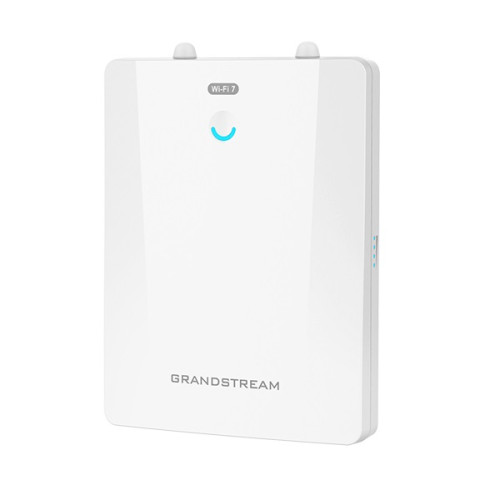

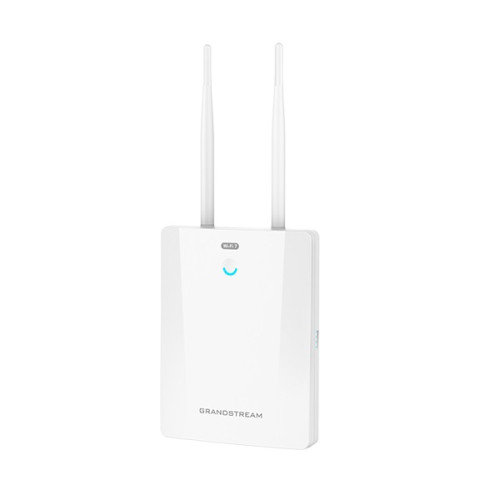

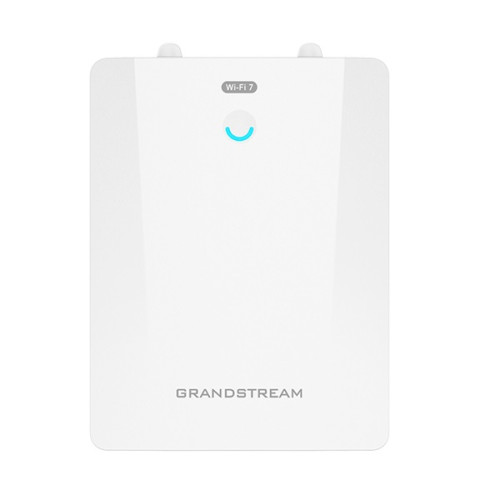

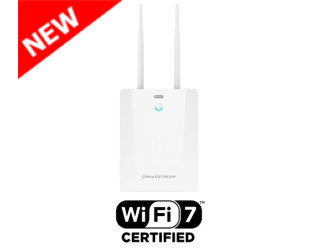

Grandstream GWN7670LR Long-Range Dual-Band Wi-Fi 7 Outdoor Access Point/Bridge
Grandstream GWN7670LR Long-Range Dual-Band Wi-Fi 7 Outdoor Access Point/Bridge
Grandstream GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage. It offers IP66-level weatherproof capability, dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. It supports flexible switching between internal directional antennas and external omnidirectional antennas. It can be combined with directional antenna and PTMP technology (pending) to serve as a professional long-range wireless bridge. With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, GWN7670LR uses a controller-less distributed network management design in which the controller is embedded within the product’s Web User Interface. It is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real- time applications, mesh networks, captive portals, BLE 5.3, 256 concurrent clients per AP, 1x2.5 Gigabit network port with PoE+ and 1x 2.5 Gigabit SFP port. GWN7670LR is an ideal long-range Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more.
Key Features & Benefits:
- 3.6Gbps aggregate wireless throughput
- 2.5Gigabit Ethernet Port & 2.5Gigabit SFP Port
- Integrated Wi-Fi 7 & Dual-band 2x2:2 MIMO with DL/UL OFDMA technology
- Up to 350-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot & critical data/control lockdown via digital signatures
- Unique security certificate/random default password per device
- Self power adaptation upon auto detection of PoE+
- Embedded controller can manage up to 50 local GWN series APs
- GDMS Networking offers unlimited AP management
- GWN Manager offers premise based software controller
- 3 Year Warranty
Hardware Specifications:
Antenna:
- 2.4G: Directional internal 8dBi/External omni 3.5dBi
- 5G: Directional internal 13.5dBi/External omni 3.5dBi
- BT: 5.0dBi
- Directional internal antenna beamwidth:
- 2.4G: 90 degree
- 5G: 35 degree
MIMO:
- 2.4GHz: 2x2:2, MIMO
- 5GHz: 2x2:2, MIMO
Frequency Bands:
- 2.4GHz Radio: 2400 - 2483.5 MHz
- 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth:
- 2.4G: 20 and 40 MHz
- 5G: 20, 40, 80 and 160 MHz
Wi-Fi Data Rates:
2.4G:
- IEEE 802.11be: Up to 688 Mbps
- IEEE 802.11ax: 7.3Mbps to 574 Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G:
- IEEE 802.11be: Up to 2882 Mbps
- IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
- IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
- IEEE 802.11n: 6.5 Mbps to 600 Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Maximum TX Power:
- 2.4G: 27 dBm
- 5G: 26 dBm
Receiver Sensitivity:
2.4G:
- 802.11b: -96dBm @1Mbps, -88dBm @11Mbps
- 802.11g: -93dBm @6Mbps, -75dBm @54Mbps
- 802.11n 20MHz: -73dBm @MCS7
- 802.11n 40MHz: -70dBm @MCS7
- 802.11ax 20MHz: -60dBm @MCS11
- 802.11ax 40MHz: -58dBm @MCS11
- 802.11be 20MHz: -65dBm @MCS11
- 802.11be 40MHz: -62dBm @MCS11
5G:
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps
- 802.11n 20MHz: -73dBm @MCS7
- 802.11n 40MHz: -70dBm @MCS7
- 802.11ac 20MHz: -67dBm @MCS8
- 802.11ac 40MHz: -63dBm @MCS9
- 802.11ac 80MHz: -59dBm @MCS9
- 802.11ax 20MHz: -60dBm @MCS11
- 802.11ax 40MHz: -58dBm @MCS11
- 802.11ax 80MHz: -56dBm @MCS11
- 802.11ax 160MHz: -52dBm@ MCS11
- 802.11be 20MHz: -59dBm @MCS13
- 802.11be 40MHz: -56dBm @MCS13
- 802.11be 80MHz: -54dBm @MCS13
- 802.11be 160MHz: -52dBm @MCS13
- Coverage Range: Up to 350 meters
Point to Multipoint (pending):
- 1 to 3
- Up to 1.5 kilometers
- Bluetooth®: BLE 5.3
Interfaces:

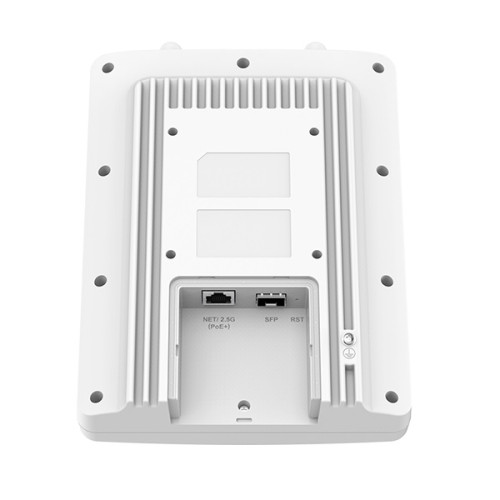

Network Ports:
- 1x 2.5G Ethernet WAN/LAN, RJ-45, PoE input
- 1x 2.5G SFP
LEDs:
- 1x tri-color LED for device tracking & status indication

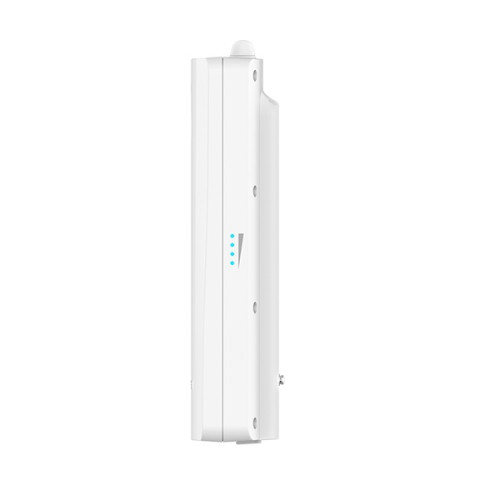

- 4x blue LED for signal strength indication (PtMP mode)
Auxiliary Ports:
- 1x Reset Pinhole
Power:
- PoE Input: 802.3at
- Max. Power Consumption: 15.5W
Physical:
- Unit Dimensions: 223.2 x 169.9 x 53.9 mm
- Unit Weight: 1.2kg
- Entire Package Dimensions: 376 × 321 × 138 mm
- Entire Package Weight: 2.7kg
- Mounting: Wall mount or pole mount, kits included
Environmental:
- Operation Temperature: -30°C to 60°C
- Storage Temperature: -40°C to 70°C
- Humidity: 10% to 90% Non-condensing
Package Contents:
- GWN7670LR Wi-Fi 7 Wireless AP
- Mounting Kits
- Quick Start Guide
Compliance:
- FCC, CE, RCM, IC
Software Specifications:
WLAN:
- Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be
- SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Basics:
- Beamforming
- OFDMA
- Multi-RU
- Preamble puncturing
- 4096-QAM
- Multilink operation (MLO)
- Target wake time (TWT)
- Maximal Ratio Combining (MRC)
- Space-Time Block Coding (STBC)
- Low-density Parity-Check (LDPC)
- 802.11 Dynamic Frequency Selection (DFS)
- BSS coloring
- SSID Hidden: Restrict access & improve wireless network security by SSID hiding
- Port Aggregation: Multiple uplink ports for port aggregation to increase uplink bandwidth
- Multicast/Broadcast: Suppression Multicast/Broadcast enable optimization with ARP proxy
- Multicast Enhancement: Convert multicast data into unicast data for transmission
- Bandwidth Limiting: Support SSID/Client/MAC/IP-based rate limiting
- Band Steering/Client Steering: Guide client to the frequency band with more abundant spectrum resources
- RRM: Dynamically assign radio power, channel
- VPN: L2TPv3
VLAN:
- Support interface/SSID/MAC binding VLAN based
- Management VLAN
- Dynamic VLAN
Time Policy:
- Track the time that the client connects to Wi-Fi
- Support setting the amount of time for the client to connect to Wi-Fi and the reconnec type after a timeout
- Schedule: Supports SSID, LED, Reboot schedule
WLAN Extension:
- Bridge: Supported
- Mesh: 2.4G, 2.4G & 5G, 5G
- Hotspot2.0: Supported
- Wireless Roaming:
- 802.11k, 802.11v, 802.11r
- Layer 2 roaming
Network:
- IPv4: Static or DHCP
- IPv6: Static or DHCP
- DHCP: Support server/client/relay
- NAT: NAT Pool
LLDP:
- Link Layer Discovery Protocol
- Discovering & identifying other LLDP enabled devices & neighboring devices in the network
User Authentication:
- 802.1x authentication: Supported
- MAC authentication: Use client MAC address as the username and password for access control through the RADIUS server
- PPSK: PPSK with/without RADIUS
- Captive Portal: Support radius/social login/vouchers/password/SAML SSO/active directory authentication
Security:
Encryption:
- Open system
- OSEN
- WPA2-PSK (personal)
- WPA2-802.1x (enterprise)
- WPA3-SAE (personal)
- WPA3-802.1x (enterprise)
- WPA/WPA2, WPA2/WPA3
- Anti-hacking secure boot & critical data/control lockdown via digital signatures
- Unique security certificate and random default password per device
- Forwarding Security:
- MAC filtering
- Client isolation
- OS filtering
WIDS:
- Inbound/outbound traffic rules
- Rogue AP detection and containment
- ARP attack defense
- ND attack defense
QoS:
- 802.11e/WMM,802.1p, 802.1q, TOS
Management Platform:
- Local Web: Embedded controller can manage up to 50 local GWN APs
- GDMS Networking: A free cloud management platform for unlimited GWN APs
- GWN Manager: premise-based software controller for up to 3,000 GWN APs
- GWN APP: Integrate GDMS Networking & GWN Manager to manage GWN APs via the APP
- Management Protocol: TR-069, SNMP
PartnerNET Grandstream GWN7670LR Long-Range Dual-Band Wi-Fi 7 Outdoor Access Point Datasheet
| Specifications | |
| Manufacturer | Grandstream |
| Product Type | Outdoor WiFi Access Point |
| Technology | 802.11be (Wi-Fi 7) |
| Aggregate Wireless Throughput | 3.6Gbps |
| Antenna | Dual-band 2x2:2 MIMO |
| Embedded Controller | YES |
| Max. Concurrent Clients | 256 |
| Max. Coverage Range | 350m |
| Bluetooth | YES |
| Ethernet Port | Gigabit |
| POE | YES |
| Wireless | YES |
| SFP Ports | YES |
| Warranty | 3 Years |
